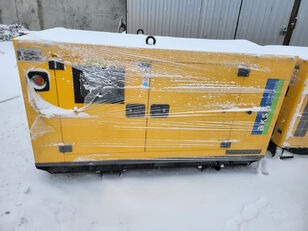

APD310C DIESEL GENERATING SET 400/230 V – 50 Hz

DescriptionAPD310C DIESEL GENERATING SET 400/230 V – 50 HzINTRODUCTIONAksa power generation system, providing optimum performance, and reliability, for stationary standby applications. All generator sets are factory build, and production tested.Certificate  TS ISO 8528  CE  SZUTEST  2000/14/ECGeneral CharacteristicsModel NameAPD 310 CFrequency (Hz)50Fuel TypeDieselEngine Made and ModelCUMMINS – 6LTAA9.5-G3Alternator Made and ModelAksa – AK 5240Control Panel ModelDSE 7320CanopyMS 60 CK3 Phase, 50 Hz, PF 0.8VOLTAGESTANDBY RATING (ESP)PRIME RATING (PRP)Standby AmperkVAkWkVAkW400/231310248.00279223.20447.46STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.ENGINE SPECIFICATIONSEngineCUMMINSEngine Model6LTAA9.5-G3NO. OF CYLINDERS AND BUILD6 cylinders – in lineBORE AND STROKEmm116.5 X 148TOTAL DISPLACEMENTL9.50AspirationTurbo Charged and Charge Air CooledCOMPRESSION RATIO16.6:1RATED SPEED (RPM)d/dk1500OIL CAPACITYL32.4Standby Power (kW/HP)280/375Prime Power250/335Block Heater QTY1Block Heater Power (Watt)3000Fuel TypeDieselInjection Type and SystemDirectType of Fuel PumpMechanicalGovernor SystemElectronicOperating Voltage (Vdc)24 VdcBattery and Capacity (Qty/Ah)2×85Cooling MethodWater CooledCooling Fan Air Flow (m3/min)550Coolant Capacity (engine only) (l)11.1/65.1Air FilterDry TypeFuel Cons. Prime With 0 Load (lt/hr)58Fuel Cons. Prime With u Load (lt/hr)44Fuel Cons. Prime With P Load (lt/hr)30ALTERNATOR SPECIFICATIONSManufacturerAksaAlternator Made and ModelAK 5240Frequency (Hz)Hz50Power (kVA)kVA300DESIGN  BrushlessVOLTAGEV400Phase3A.V.R.SX440Voltage Regulation( /-)1Insulation SystemHProtectionIP22Rated Power Factor0.8WEIGHT COMP. GENERATOR (Kg)940COOLING AIR (m³/min)m329.16SIZE and WEIGHTOpen TypeDRY WEIGHT (kg.) (kg.)LENGTH (mm.)WIDTH (mm.)HEIGHT (mm.)TANK CAPACITY (lt.) (Lt.)2660284013001845470CANOPYDRY WEIGHT (kg.) (kg.)LENGTH (mm.)WIDTH (mm.)HEIGHT (mm.)TANK CAPACITY (lt.) (Lt.)MS 60 CK 3350396313562171470STANDARD SPECIFICATIONSWater cooled, Diesel engine Radiator with mechanical fan Protective grille for rotating and hot parts Electric starter and charge alternator Starting battery (with lead acid) including rack and cables Engine coolant heater Base frame design incorporates an integral fuel tank and anti-vibration isolators Flexible fuel connection hoses Single bearing, class H alternator Industrial exhaust silencer and steel bellows supplied separately(for open sets) Static battery charger Manual for application and installationOPTIONAL EQUIPMENTSENGINEFuel-Water Seperator FilterLow water level alarmOil heaterALTERNATORAnti-Condensation HeaterMain line circuit breakerCONTROL SYSTEMEarth fault, single setCharge AmmeterTRANSFER SWITCHThree Pole ContactorFour Pole ContactorThree or four pole motor operated circuit breakerOTHER ACCESSORIESMain Fuel TankAutomatic or manual fuel filling systemManual oil drain pumpLow and high fuel level alarmEnclosure: weater protective or sound attenuatedTrailerTool kit for maintenanceAPD310C DIESEL GENERATING SET APD310C DIESEL GENERATING SET APD310C DIESEL GENERATING SET APD310C DIESEL GENERATING SET APD310C DIESEL GENERATING SET APD310C DIESEL GENERATING SET
