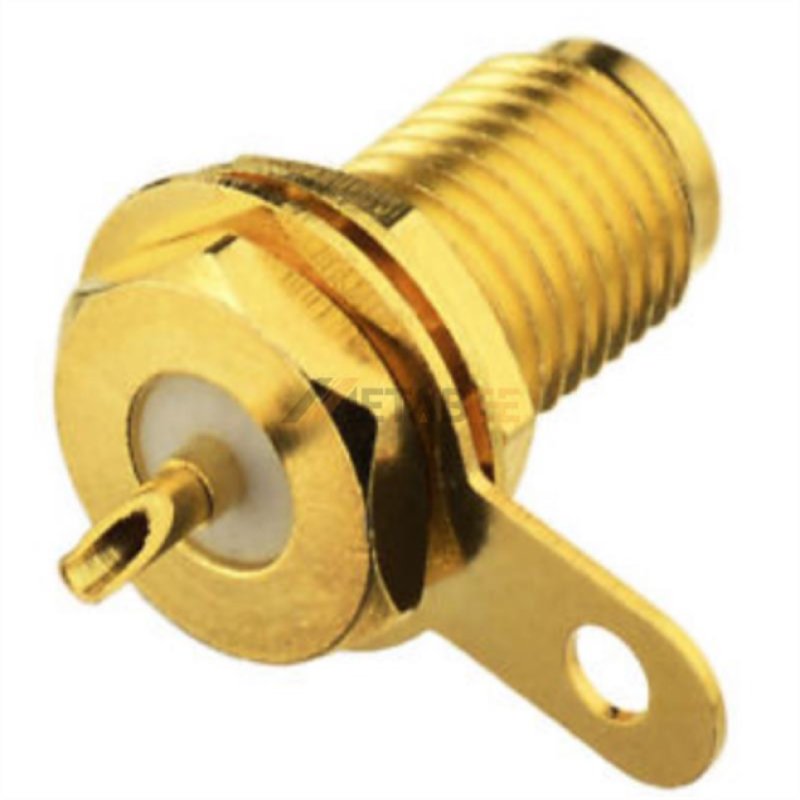

SMA Bulkhead Jack Connector, Straight, Panel Mount, 50 Ohm

SMA Bulkhead Jack Connector, Straight, Panel Mount, 50 Ohm Introduction This SMA bulkhead jack connector will improve your RF connections. We designed it to provide seamless and reliable signal transmission in harsh environments. This high-quality connector is suitable for electronics enthusiasts, engineers, and technology professionals. It will provide you with unrivaled performance and convenience. There are many great features of this SMA female connector, including: Robust Construction. We manufactured this SMA connector with durable materials. So, it can ensure longevity and consistent performance even in challenging conditions. The robust construction guarantees resistance to wear, tear, and environmental factors. Optimal Signal Integrity. We designed this SMA connector with a 50-ohm impedance rating. So, it can minimize signal loss while maintaining exceptional signal integrity. It will result in less interference and better data transmission. Panel Mount Capability. We designed this SMA bulkhead connector for convenience. Its bulkhead panel mount feature facilitates secure and organized installation on various surfaces. SMA Compatibility. This connector follows the widely accepted SMA interface standard. So, it ensures compatibility with an array of SMA cables and devices. Versatile Applications. This connector is suitable for both commercial and industrial applications. For example, you can use it for cellular base stations and satellite communications. Main Specifications: General Information: Product No.: DS806FCS117   Product Series: SMA Connectors   Brand: Metabee   Gender: Female   Orientation: Straight   Number of Contacts: 1 Port   Contact Termination: Solder   Mount Method: Panel Mount   Mount Feature: Bulkhead   Fastening Type: Threaded Coupling   Other Feature: None   Materials and Plating: Body Material: Copper   Body Plating: Gold-Plated   Insulator Material: TEFLON   Contact Material: Phosphor   Contact Plating: Gold-Plated   Electrical Performance: Impedance: 50 Ohm   Frequency Range:  0-6 GHz   VSWR: ≤1.3 Max.   Center Contact Resistance: ≦ 6.0 mΩ Max (Milliohms max.)   Outer Contact Resistance: ≤ 2.0 mΩ Max (Milliohms max.)   Insulation Resistance: ≧ 5*10³ MΩ (Megohms min.)   Mechanical Performance: Coupling: 1/4-36 Threaded   Contact Retention: 30 in. lbs. min.   Durability: ≥ 500 Cycles   Environmental Performance: Temperature Range:  -65°C to 155°C   Vibration: MIL-STD-202 Meth.204   Corrosion resistance: MIL-STD-202 Meth. 101   SMA Connector Interface Dimensions: Applications of this SMA Bulkhead Jack Connector: Telecommunication Infrastructure: antennas, cellular base stations, and satellite communications. Wireless Connectivity: Wi-Fi routers, Bluetooth devices, and RFID applications. RF Testing and Measurement: radar systems, instrumentation, and high-frequency testing equipment. Aerospace and Defense: radar systems, satellite communications, avionics, and military equipment. Medical Devices and Instrumentation: MRI machines, diagnostic equipment, and monitoring devices. Internet of Things (IoT): smart sensors and home automation systems Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System Download the RF Connectors PDF Catalog: Metabee's RF Coaxial Connectors Catalog (PDF, 3.7 MB) Learn more about our RF Coaxial connectors. Factory pricing and exceptional product quality. Get a free quote now! Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF connectors.
