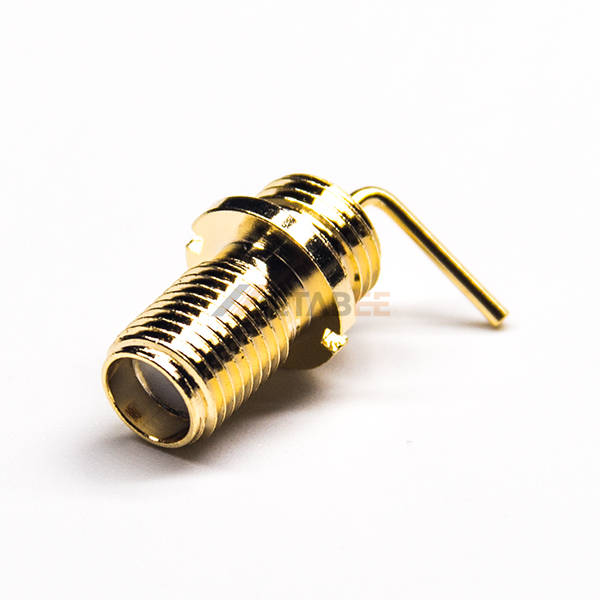

SMA Female Right Angle Bulkhead Panel Mount Connector 50 Ohm

SMA Female Right Angle Bulkhead Panel Mount Connector 50 Ohm introduction The SMA connector is designed for high-reliability RF performance in compact installations. Featuring a right-angle orientation and bulkhead panel mount design, it enables secure through-wall installation for stable mechanical and electrical connections. Its solder termination ensures consistent signal integrity, making it ideal for applications requiring dependable performance up to 6 GHz. Constructed with a copper body and gold-plated finish, this connector delivers superior conductivity and corrosion resistance. The phosphor bronze contacts, also gold-plated, ensure low contact resistance and long-term durability. A TEFLON insulator provides excellent dielectric stability, maintaining a VSWR of 1.5:1 across the DC to 6 GHz frequency range. Engineered to operate in extreme environments, it withstands temperatures from -65 °C to 155 °C. Key Features: 50 Ohm impedance with VSWR 1.5:1 for reliable RF performance Right-angle bulkhead panel mount design for secure installation Gold-plated copper housing and phosphor bronze contacts for durability TEFLON insulation for excellent dielectric stability Wide frequency range from DC to 6 GHz, with broad operating temperature tolerance Main Specifications: General Information: Product No.: YC-612-1109   Product Series: SMA Connectors   Brand: Metabee   Gender: Female   Orientation: Right Angle   Number of Contacts: 1 Port   Contact Termination: Solder   Mount Method: Panel Mount   Mount Feature: Bulkhead   Fastening Type: Threaded Coupling   Other Feature: None   Materials and Plating: Body Material: Copper   Body Plating: Gold-Plated   Insulator Material: TEFLON   Contact Material: Phosphor   Contact Plating: Gold-Plated   Electrical Performance: Impedance: 50 Ohm   Frequency Range:  0-6 GHz   VSWR: ≤1.5   Center Contact Resistance: ≦ 6.0 mΩ Max. (Milliohms max.)   Outer Contact Resistance: ≤ 2.0 mΩ Max. (Milliohms max.)   Insulation Resistance: ≧ 5*10³ MΩ (Megohms min.)   Mechanical Performance: Coupling: 1/4-36 Threaded   Contact Retention: 30 in. lbs. min.   Durability: ≥ 500 Cycles   Environmental Performance: Temperature Range:  -65°C to 155°C   Vibration: MIL-STD-202 Meth.204   Corrosion resistance: MIL-STD-202 Meth. 101   SMA Connector Interface Dimensions: Applications of this SMA Female Right Angle Bulkhead Panel Mount Connector: Telecommunication Infrastructure: antennas, cellular base stations, and satellite communications. Wireless Connectivity: Wi-Fi routers, Bluetooth devices, and RFID applications. RF Testing and Measurement: radar systems, instrumentation, and high-frequency testing equipment. Aerospace and Defense: radar systems, satellite communications, avionics, and military communication equipment. Medical Devices and Instrumentation: MRI machines, diagnostic equipment, and monitoring devices. Internet of Things (IoT): smart sensors and home automation systems Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System Download the RF Connectors PDF Catalog: Metabee's RF Coaxial Connectors Catalog (PDF, 3.7 MB) Learn more about our RF Coaxial connectors. Factory pricing and exceptional product quality. Get a free quote now! Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF connectors.
