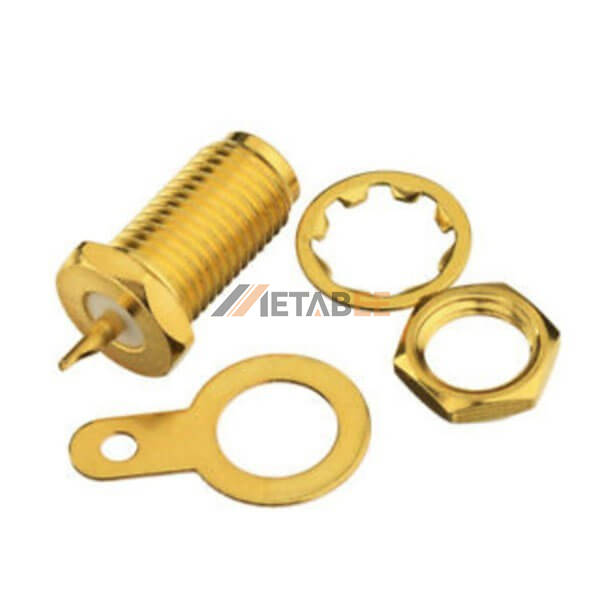

SMA Jack Bulkhead Panel Mount Connector, Straight, 50 Ohm

SMA Jack Bulkhead Panel Mount Connector, Straight, 50 Ohm Introduction With this SMA jack bulkhead connector, you’ll experience excellent signal transmission. We designed it to deliver exceptional performance and reliability in various RF applications. It’s an ideal choice for seamless RF connectivity. This SMA female connector has many great features, including: Bulkhead Panel Mount. This SMA connector features a bulkhead panel mount design. It provides convenience and flexibility in installation. Besides, it allows for a secure and stable connection to panels or enclosures. Straight Design. The straight design offers a direct path for the signal. 50 Ohm Impedance. We designed this SMA bulkhead connector with a 50-ohm impedance to match most RF applications. High-Quality Construction. We manufactured this SMA female connector with high-quality materials. It ensures outstanding corrosion resistance even in harsh environments. Main Specifications: General Information: Product No.: YC-612-0254   Product Series: SMA Connectors   Brand: Metabee   Gender: Female   Orientation: Straight   Number of Contacts: 1 Port   Contact Termination: Solder   Mount Method: Panel Mount   Mount Feature: Bulkhead   Fastening Type: Threaded Coupling   Other Feature: None   Materials and Plating: Body Material: Stainless Steel   Body Plating: Nickel-Plated   Insulator Material: TEFLON   Contact Material: Phosphor   Contact Plating: Gold-Plated   Electrical Performance: Impedance: 50 Ohm   Frequency Range:  0-6 GHz   VSWR: ≤1.3   Center Contact Resistance: ≦ 6.0 mΩ Max. (Milliohms max.)   Outer Contact Resistance: ≤ 2.0 mΩ Max. (Milliohms max.)   Insulation Resistance: ≧ 5*10³ MΩ (Megohms min.)   Mechanical Performance: Coupling: 1/4-36 Threaded   Contact Retention: 30 in. lbs. min.   Durability: ≥ 500 Cycles   Environmental Performance: Temperature Range:  -65°C to 155°C   Vibration: MIL-STD-202 Meth.204   Corrosion resistance: MIL-STD-202 Meth. 101   SMA Connector Interface Dimensions: Applications of SMA Jack Bulkhead Panel Mount Connector: Telecommunication Infrastructure: antennas, cellular base stations, and satellite communications Wireless Connectivity: Wi-Fi routers, Bluetooth devices, and RFID applications RF Testing and Measurement: radar systems, instrumentation, and high-frequency testing equipment Aerospace and Defense: radar systems, satellite communications, avionics, and military communication equipment Medical Devices and Instrumentation: MRI machines, diagnostic equipment, and monitoring devices Internet of Things (IoT): smart sensors and home automation systems Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System Download the RF Connectors PDF Catalog: Metabee's RF Coaxial Connectors Catalog (PDF, 3.7 MB) Learn more about our RF Coaxial connectors. Factory pricing and exceptional product quality. Get a free quote now! Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF connectors.
